CXLB7201 CXLB7201B是一个完整的恒流恒压单电池锂离子电池线性充电器。它的包装和低外部组件数量使CXLB7201 CXLB7201B非常适合便携式应用程序设计工作在USB电源规格范围内。没有外部感测电阻器需要，并且由于内部MOSFET不需要阻塞二极管建筑。充电电压固定在4.2V，充电电流可以在外部用一个电阻器编程。当充电电流在最终浮充后降至编程值的1/10
达到电压。
[ 产品资料下载 ]
产品技术资料帮助
查看全部>
目录
1.产品概述 2.产品特点
3.应用范围 4.下载产品资料PDF文档
5.产品封装图 6.电路原理图
7.功能概述 8.相关产品
一,产品概述(General Description)
The CXLB7201 CXLB7201B is a complete constant-current constant-voltage
linear charger for single cell lithium-ion batteries. Its package and low external
component count make the CXLB7201 CXLB7201B ideally suitedfor portable applications.Furthermore,theCXLB7201 CXLB7201B is specifically
designed to work within USB power specifications.No external sense resistor is
needed, and no blocking diode is required due to the internal MOSFET
architecture. The charge voltage isfixed at 4.2V, and the charge current can
be programmed externally with a single resistor.
The CXLB7201 CXLB7201B automatically terminates the charge cycle when
the charge current drops to 1/10th the programmed value after the final float
voltage is reached.
The CXLB7201 CXLB7201B converters are available in the industry standard
SOT-23-5L power packages (or upon request).
二.产品特点(Features)
Programmable Charge Current up to 700mA
No MOSFET, Sense Resistor or Blocking Diode Required
Constant-Current/Constant-Voltage Operation with Thermal Regulation to
Maximize Charge Rate
Charges Single Cell Li-Ion Batteries Directly from USB Port
Preset 4.2V Charge Voltage with 1% Accuracy
Automatic Recharge
2.9V Trickle Charge Threshold
Available in 5-Lead SOT-23 Package
三,应用范围 (Applications)
Charger for Li-Ion Coin Cell Batteries
Portable MP3 Players, Wireless Headsets
Bluetooth Applications
Multifunction Wristwatches
四.技术规格书下载（产品PDF）
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

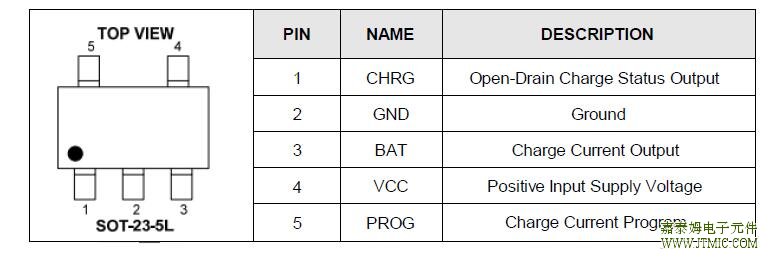

五,产品封装图 (Package)

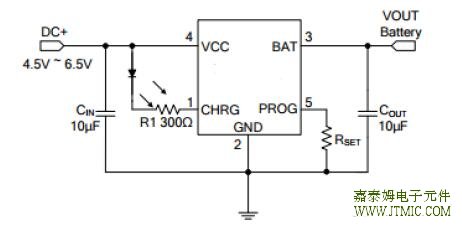

六.电路原理图
七,功能概述
Input Supply Voltage (VCC) ........................................................................................... -0.3V ～ 7V
PROG.............................................................................................................. -0.3V ～ VCC + 0.3V
BAT, CHRG.................................................................................................................... -0.3V ～ 7V
BAT Pin Current ..................................................................................................................... 800mA
Maximum Junction Temperature............................................................................................. +150℃
Operating Ambient Temperature Range (Note 2)......................................................-40℃ ～ +85℃
Storage Temperature Range …………………………………………….................. -65℃ ～ +125℃
Lead Temperature (Soldering, 10 sec)................................................................................... +265℃
