产品概述 返回TOPiHh嘉泰姆

The CXDR75101/CXDR75102 are microprocessor (μP) supervisory circuits used to monitor the power supplies in μP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V- powered circuits. These circuits perform a single function: they assert a reset signal whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for at least 220ms after VCC has risen above the reset threshold. Reset thresholds suitable for operation with a variety of supply voltages are available. The CXDR75102 has an open-drain output stage, while the CXDR75101 have push-pull outputs. The CXDR75102s open-drain RESET output requires a pull-up resistor that can be connected to a voltage higher than VCC. The CXDR75101have an active-low RESET output. The reset comparator is designed to ignore fast transients on VCC, and the outputs are guaranteed to be in the correct logic state for VCC down to 1V. Low supply current makes the CXDR75101 CXDR75102ideal for use in portable equipment. The CXDR75101 CXDR75102are available in 3-pin SOT-23 packages.

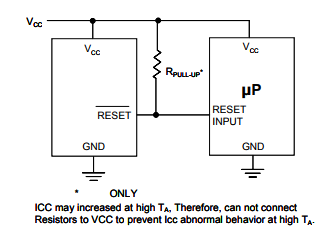

   产品特点 返回TOPiHh嘉泰姆

„ Precision Monitoring of +3V, +3.3V, and +5V Power-Supply Voltages iHh嘉泰姆

„ Fully Specified Over Temperature iHh嘉泰姆

„ Available in two Output Configurations Push-Pull RESET Output (CXDR75101) Open-Drain RESET Output (CXDR75102) iHh嘉泰姆

„ 220ms min Power-On Reset Pulse Width iHh嘉泰姆

„ 10μA Supply Current iHh嘉泰姆

„ Guaranteed Reset Valid to VCC = +1V iHh嘉泰姆

„ Power Supply Transient Immunity iHh嘉泰姆

„ No External Components iHh嘉泰姆

„ 3-Pin SOT-23 PackagesiHh嘉泰姆

   应用范围 返回TOPiHh嘉泰姆

„ Computers iHh嘉泰姆

„ Controllers iHh嘉泰姆

„ Intelligent Instruments iHh嘉泰姆

„ Critical μP and μC Power Monitoring iHh嘉泰姆

„ Portable / Battery-Powered Equipment iHh嘉泰姆

„ AutomotiveiHh嘉泰姆

   技术规格书（产品PDF) 返回TOP iHh嘉泰姆

     需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！iHh嘉泰姆
