The CXEP2329 and CXEP2329A are highly integrated SoCs with an MPU core, RTC, flash, and LCD driver, delta-sigma ADC provides up to six analog inputs. Digital temperature compensation, precision voltage reference, and 32-bit computation engine (CE) supports a wide range of single and polyphase metering applications with very few low-cost external components. A 32kHz crystal time base for the entire system and internal battery-backup support for RAM and RTC further reduce system cost.Maximum design flexibility is supported with multiple UARTs, I2C, a power-fail comparator, a 5V LCD charge pump, up to 22 DIO pins, and an in-system programmable flash. The device is a standard (0.5%) accuracy version for multifunction residential/commercial meter applications requiring multiple voltage/current inputs and complex LCD or DIO configurations.A complete array of ICE and development tools, programming libraries, and reference designs enable rapid development and certification of meters that meet most demanding worldwide electricity metering standards.

   产品特点 返回TOPFjR嘉泰姆

FjR嘉泰姆

Wh Accuracy < 0.1% Over 2,000:1 Current Range FjR嘉泰姆

 Exceeds IEC 62053/ANSIC 12.20 FjR嘉泰姆

 Voltage Reference < 10ppm/FjR嘉泰姆

C (CXEP2329A) < 40ppm/°C (CXEP2329) FjR嘉泰姆

 Six Sensor Inputs—VDD Referenced FjR嘉泰姆

 Auxiliary Analog Input for Neutral Current FjR嘉泰姆

 Low Jitter Wh/VARh Pulse Outputs FjR嘉泰姆

 Pulse Count For Pulse Outputs FjR嘉泰姆

 Four-Quadrant Metering FjR嘉泰姆

 Phase Sequencing FjR嘉泰姆

 Line Frequency Count for RTC FjR嘉泰姆

 Digital Temperature Compensation FjR嘉泰姆

 Sag Detection FjR嘉泰姆

 Independent 32-Bit Compute Engine FjR嘉泰姆

 40-70Hz Line Frequency Range with Same Calibration FjR嘉泰姆

 Phase Compensation (7) FjR嘉泰姆

 Battery Backup for RAM and RTC FjR嘉泰姆

 22mW at 3.3V, 7.2W Backup FjR嘉泰姆

 Flash Memory Option with Security FjR嘉泰姆

 8-Bit MPU (80515)—One Clock Cycle per Instruction FjR嘉泰姆

 LCD Driver ( 168 Pixels) FjR嘉泰姆

 High-Speed SSI Serial Output FjR嘉泰姆

 RTC for Time-of-Use Functions FjR嘉泰姆

 Hardware Watchdog Timer FjR嘉泰姆

 Up to 22 General-Purpose I/O Pins FjR嘉泰姆

 64KB Flash, 7KB RAM FjR嘉泰姆

 Two UARTs for IR and AMR FjR嘉泰姆

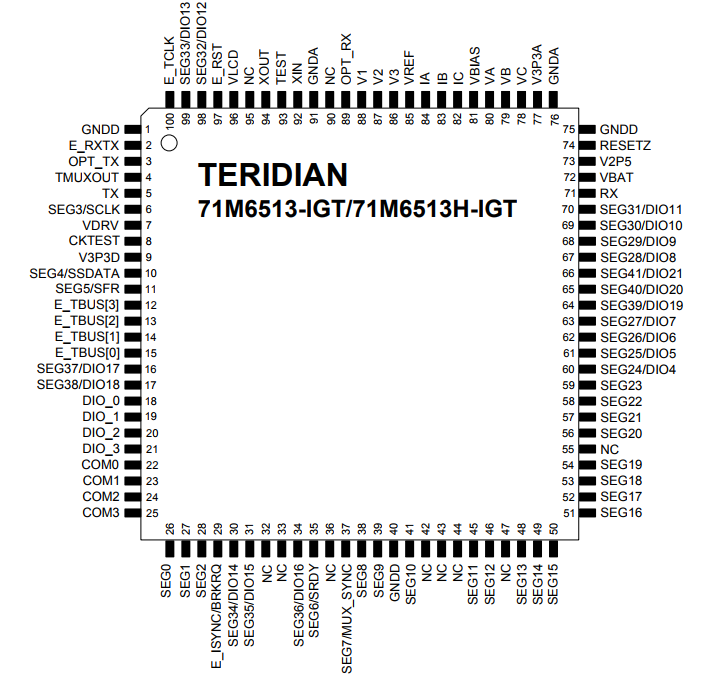

 100-Pin LQFP Package
FjR嘉泰姆

   应用范围 返回TOPFjR嘉泰姆

Industrial, Commercial, and Residential MetersFjR嘉泰姆
