   产品概述 返回TOPwBW嘉泰姆

      CXAR41180是一款单声道的全差动架构音频放大器，当电源电压为5V时，连续传递1.36W平均功率至8Ω BTL负载，并使失真度(THD+N) 控制在1%以下，当电源电压为3.6V时，传递720mW至8Ω负载。The CXAR41180 is a mono fully-differential audio amplifier, capable of delivering 1.36W of continuous average power to an 8Ω BTL load with less than 1% distortion (THD+N) from a 5V power supply, and 720mW to a 8Ω load from a 3.6V power supply. The CXAR41180 is ideal for PDA/smart phone application due to features such as -80-dB supply voltage rejection from 20Ha to 2kHz, improved RF rectification immunity, small 20mm2 PCB area, and a fast startup with minimal pop. The CXAR41180 is available in a MSOP-8 and in the space-saving 3mm × 3mm DFN package.

   产品特点 返回TOPwBW嘉泰姆

• 工作电压2.5 V到5.5 VwBW嘉泰姆

• THD=1%時, 5V电源供应能传递1.36W功率至8Ω BTL负载wBW嘉泰姆

• 低静态电流︰5 V時（典型4mA）wBW嘉泰姆

• 非常低的关断电流(典型0.01uA)wBW嘉泰姆

• 微小Pop可快速重新开机wBW嘉泰姆

• 3 个外部组成组件wBW嘉泰姆

- 高PSRR(-80dB)可采用直流电池供电wBW嘉泰姆

- 全差动设计减少RF修正wBW嘉泰姆

- 高CMRR(-63dB) 无需输入耦合电容wBW嘉泰姆

• 符合RoHS规范及Pb-FreewBW嘉泰姆

z Supply Voltage 2.5V to 5.5V wBW嘉泰姆

z 1.36W into 8Ω from a 5-V Supply at THD=1% (typ) wBW嘉泰姆

z Low Supply Current: 4mA typ at 5V wBW嘉泰姆

z Shutdown Current: 0.01μA typ wBW嘉泰姆

z Fast Startup with Minimal Pop wBW嘉泰姆

z Only Three External Components wBW嘉泰姆

- Improved PSRR (-80dB) for Direct Battery Operation wBW嘉泰姆

- Full Differential Design Reduces RF Rectification wBW嘉泰姆

-63dB CMRR Eliminates Two Input Coupling Capacitors wBW嘉泰姆

z RoHS Compliant and 100% Lead (Pb)-FreewBW嘉泰姆

   应用范围 返回TOPwBW嘉泰姆

• 无线耳机wBW嘉泰姆

• PDAwBW嘉泰姆

• 便携式设备wBW嘉泰姆

z Wireless Handsets wBW嘉泰姆

z PDAs wBW嘉泰姆

z Portable DeviceswBW嘉泰姆

   技术规格书（产品PDF) 返回TOP wBW嘉泰姆

     需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！wBW嘉泰姆

 wBW嘉泰姆

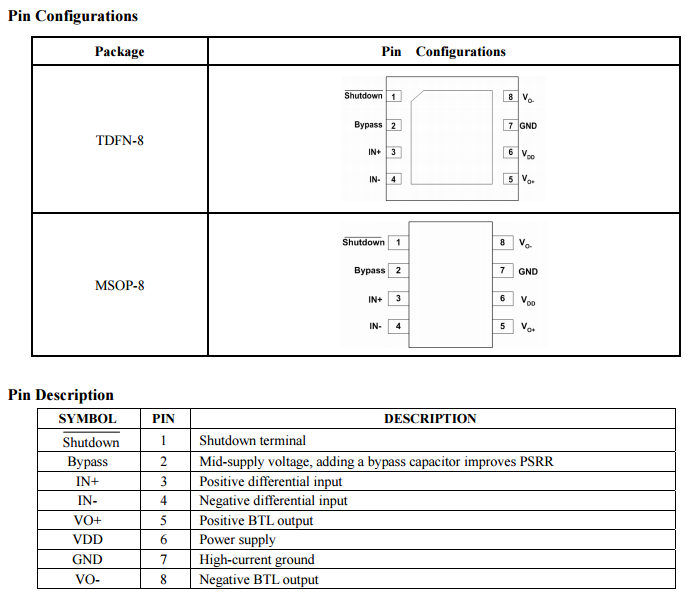

产品封装图 返回TOPwBW嘉泰姆
