CXLE81100宽4.2V至24V输入电压可编程LED通道电流30mA高效的6通道白色LED驱动器开关电流模式升压控制器驱动6串并联每串10个LED脉宽调制到直流调光

产品简介

The CXLE81100 is a high-efficiency 6-channel white LED driver. It is designed for LCD panel that employs an LED array as the lighting source. An integrated switch current mode boost controller drives six strings in parallel and supports up to 10 pieces of LEDs per string. The CXLE81100 automatically regulated supply voltage for the LED light bars without the need to calculate the output for different LED types. It also integrates a 40V n-channel MOSFET that provides high output power. The 6-channel current driver is ideal for constant current driving, and well matched less than 3%. To set the maximum driving current, the ISET pin is used to determine reference current. Each channel of the current drivers is set to 800 times of this reference current. A PWM pin can be used to perform PWM dimming from the range of 100Hz to 25kHz. The MODE pin in CXLE81100 is used to set the dimming mode. If MODE pin set to floating, the dimming mode is in the PWM mode, the current driver ON/OFF is synchronized with the PWM signal. If Mode pin set to AGND, PWM and ILED current is set at PWM duty multiplied by ISET current when PWM duty ≥ 25%. If the PWM duty<25%, the ILED current is fixed at 0.25xISET, and the dimming duty is 4 x PWM duty. If MODE set to VDC, the dimming mode operated in the Pure DC mode, the current-source outputs are DC dimming and the PWM duty cycle modulates the amplitude of the currents. Open LED-string automatically disable the channel from entering over voltage protection.

产品特点 返回TOPNuQ嘉泰姆

„ Wide 4.2V to 24V Input Supply Range NuQ嘉泰姆

„ 600KHz Fixed Frequency NuQ嘉泰姆

„ 40V/2A, 0.2Ω n-channel MOSFET NuQ嘉泰姆

„ Maximum Programmable LED Channel Current 30mA NuQ嘉泰姆

„ Current accuracy ±3% and current balance ±2% NuQ嘉泰姆

„ 100Hz~25kHz PWM Dimming NuQ嘉泰姆

„ PWM to DC Dimming NuQ嘉泰姆

„ Protection NuQ嘉泰姆

Š Input Under-Voltage Protection NuQ嘉泰姆

Š Over Current Protection NuQ嘉泰姆

Š Over Voltage Protection NuQ嘉泰姆

Š Thermal Protection NuQ嘉泰姆

„ RoHs Compliant NuQ嘉泰姆

„ TQFN4X4-20 PackageNuQ嘉泰姆

应用范围 返回TOPNuQ嘉泰姆

„ UMPC and Notebook Computer BacklightNuQ嘉泰姆

技术规格书（产品PDF) 返回TOP NuQ嘉泰姆

需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！NuQ嘉泰姆

QQ截图20160419174301.jpg NuQ嘉泰姆

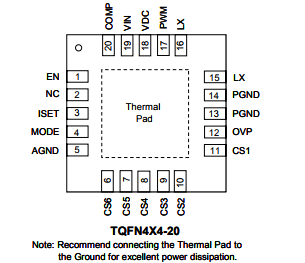

产品封装图 返回TOPNuQ嘉泰姆

NuQ嘉泰姆

电路原理图 返回TOPNuQ嘉泰姆

NuQ嘉泰姆

相关芯片选择指南返回TOP 更多同类产品......

LED Backlight DriverNuQ嘉泰姆
Part NO.NuQ嘉泰姆	Vin(V)NuQ嘉泰姆 min.NuQ嘉泰姆	Vin(V)NuQ嘉泰姆 max.NuQ嘉泰姆	CHNuQ嘉泰姆	VOUTNuQ嘉泰姆 (max)NuQ嘉泰姆	ISWNuQ嘉泰姆 (A)NuQ嘉泰姆	FSWNuQ嘉泰姆 (kHz)NuQ嘉泰姆	VLEDNuQ嘉泰姆 FB(V)NuQ嘉泰姆	NoteNuQ嘉泰姆	PackageNuQ嘉泰姆
CXLE8198NuQ嘉泰姆	2.5NuQ嘉泰姆	5.5NuQ嘉泰姆	1NuQ嘉泰姆	20NuQ嘉泰姆	1.2NuQ嘉泰姆	1000NuQ嘉泰姆	0.1/0.2NuQ嘉泰姆 / 0.3NuQ嘉泰姆	LX,GND,FB,EN,OVP,VIN,EN Dimming NuQ嘉泰姆 100~200kHz,6SxPNuQ嘉泰姆	TSOT23-6NuQ嘉泰姆
CXLE8199NuQ嘉泰姆	2.5NuQ嘉泰姆	5.5NuQ嘉泰姆	1NuQ嘉泰姆	40NuQ嘉泰姆	1.2NuQ嘉泰姆	1000NuQ嘉泰姆	0.2NuQ嘉泰姆	LX,GND,FB,EN,OVP,VIN,EN Dimming NuQ嘉泰姆 100~200kHzNuQ嘉泰姆	TSOT23-6NuQ嘉泰姆
CXLE81100NuQ嘉泰姆	4.2NuQ嘉泰姆	24NuQ嘉泰姆	6NuQ嘉泰姆	40NuQ嘉泰姆	2NuQ嘉泰姆	600NuQ嘉泰姆	1.25NuQ嘉泰姆	30mA/CH,Dimming 100~25kHz,EN,OCP,NuQ嘉泰姆 OVP,PWM/DC/Mixed DimmingModeNuQ嘉泰姆	TQFN4X4-20NuQ嘉泰姆
CXLE81101NuQ嘉泰姆	2.7NuQ嘉泰姆	5.5NuQ嘉泰姆	6NuQ嘉泰姆	40NuQ嘉泰姆	2NuQ嘉泰姆	600NuQ嘉泰姆	1.25NuQ嘉泰姆	30mA/CH,Dimming 100~25kHz,EN,OCP, OVP,PWM/DC/Mixed Dimming ModeNuQ嘉泰姆	TQFN4X4-20NuQ嘉泰姆
CXLE81102NuQ嘉泰姆	2.5NuQ嘉泰姆	20NuQ嘉泰姆	1NuQ嘉泰姆	20NuQ嘉泰姆	1.2NuQ嘉泰姆	1000NuQ嘉泰姆	0.2NuQ嘉泰姆	OVP,FB,DIMC,GND,LX,BP,PWM, EN,PWMNuQ嘉泰姆 Dimming 100~200kHz,6SxPNuQ嘉泰姆	TDFN2X2-8NuQ嘉泰姆
CXLE81103NuQ嘉泰姆	2.5NuQ嘉泰姆	5.5NuQ嘉泰姆	1NuQ嘉泰姆	40NuQ嘉泰姆	1.2NuQ嘉泰姆	1000NuQ嘉泰姆	0.2NuQ嘉泰姆	LX,GND,FB,EN,OVP,VIN,EN Dimming NuQ嘉泰姆 100~200kHzNuQ嘉泰姆	SOT23-6NuQ嘉泰姆
CXLE81104NuQ嘉泰姆	2.7NuQ嘉泰姆	5.5NuQ嘉泰姆	1NuQ嘉泰姆	28NuQ嘉泰姆	0.85NuQ嘉泰姆	1000NuQ嘉泰姆	0.2NuQ嘉泰姆	LX,GND,FB,EN,OVP,INNuQ嘉泰姆	TDFN2X2-8/SOT-23-6NuQ嘉泰姆
CXLE81105NuQ嘉泰姆	2.7NuQ嘉泰姆	7NuQ嘉泰姆	1NuQ嘉泰姆	26NuQ嘉泰姆	0.7NuQ嘉泰姆	600NuQ嘉泰姆	0.2*ENNuQ嘉泰姆 DutyNuQ嘉泰姆	FB,COMP,GND,LX, EN,VIN,5k~100kHz EN BrightnessControlNuQ嘉泰姆	TDFN2X2-6NuQ嘉泰姆
CXLE81106NuQ嘉泰姆	2.7NuQ嘉泰姆	7NuQ嘉泰姆	1NuQ嘉泰姆	38NuQ嘉泰姆	0.7NuQ嘉泰姆	600NuQ嘉泰姆	0.2*ENNuQ嘉泰姆 DutyNuQ嘉泰姆	FB,COMP,GND,LX, EN,VIN,5k~100kHz EN BrightnessControlNuQ嘉泰姆	TDFN2X2-6NuQ嘉泰姆
CXLE81107NuQ嘉泰姆	5NuQ嘉泰姆	24NuQ嘉泰姆	6NuQ嘉泰姆	40NuQ嘉泰姆	2NuQ嘉泰姆	1000NuQ嘉泰姆	1.23NuQ嘉泰姆	30mA/CH,PWM dimming,EN,SS,OCP,NuQ嘉泰姆 OVP,OTP,OLP,SLPNuQ嘉泰姆	TQFN3X3-16NuQ嘉泰姆
CXLE81107LNuQ嘉泰姆	3.2NuQ嘉泰姆	24NuQ嘉泰姆	6NuQ嘉泰姆	40NuQ嘉泰姆	2NuQ嘉泰姆	1000NuQ嘉泰姆	1.23NuQ嘉泰姆	30mA/CH,PWM dimming,EN,SS,OCP, OVP,OTP,OLP,SLPNuQ嘉泰姆	TQFN3X3-16NuQ嘉泰姆
CXLE81108NuQ嘉泰姆	5NuQ嘉泰姆	24NuQ嘉泰姆	6NuQ嘉泰姆	50NuQ嘉泰姆	2NuQ嘉泰姆	750NuQ嘉泰姆	1.23NuQ嘉泰姆	30mA/CH, PWM dimming, EN,SS, OCP,OVP,OTP,OLPNuQ嘉泰姆	TQFN4X4-20NuQ嘉泰姆
CXLE81109NuQ嘉泰姆 B/C/LNuQ嘉泰姆	4.2NuQ嘉泰姆	24NuQ嘉泰姆	8NuQ嘉泰姆	48NuQ嘉泰姆	3NuQ嘉泰姆	1000NuQ嘉泰姆	0.6NuQ嘉泰姆	30mA/CH,PWM dimming,EN,SS,OCP,NuQ嘉泰姆 OVP,OTP,OLPNuQ嘉泰姆	TQFN4X4-24NuQ嘉泰姆 TSSOP20(FD)NuQ嘉泰姆
CXLE81110NuQ嘉泰姆	7NuQ嘉泰姆	18NuQ嘉泰姆	1NuQ嘉泰姆	EXTNuQ嘉泰姆	VCS NuQ嘉泰姆 SETNuQ嘉泰姆	ADJNuQ嘉泰姆	1.2NuQ嘉泰姆	Programmable ILED, PWM Dimming,NuQ嘉泰姆 Hiccup mode for OVP,SCPNuQ嘉泰姆	SOP-16NuQ嘉泰姆
CXLE81111NuQ嘉泰姆	10NuQ嘉泰姆	30NuQ嘉泰姆	4NuQ嘉泰姆	EXTNuQ嘉泰姆	VCS NuQ嘉泰姆 SETNuQ嘉泰姆	ADJNuQ嘉泰姆	0.8NuQ嘉泰姆	20mA~150mA/CH, PWM dimming,EN, SS,OCP,OVP,OTP, OLP,SLPNuQ嘉泰姆	TSSOP20(FD)NuQ嘉泰姆
CXLE81112NuQ嘉泰姆 /ANuQ嘉泰姆	7NuQ嘉泰姆	27NuQ嘉泰姆	4NuQ嘉泰姆	EXTNuQ嘉泰姆	VCS NuQ嘉泰姆 SETNuQ嘉泰姆	ADJNuQ嘉泰姆	1.23NuQ嘉泰姆	Programmable ILED,True PWM& Analog Dimming,Hiccup mode for OVP,OLP, SLPNuQ嘉泰姆	TQFN4X4-24NuQ嘉泰姆 TQFN4X4-28NuQ嘉泰姆
CXLE81113NuQ嘉泰姆 /4NuQ嘉泰姆	5NuQ嘉泰姆	28NuQ嘉泰姆	12NuQ嘉泰姆	EXTNuQ嘉泰姆	VCS NuQ嘉泰姆 SETNuQ嘉泰姆	ADJNuQ嘉泰姆	0.6NuQ嘉泰姆	60mA/CH G5997,120mA/CH G5999 Analog&NuQ嘉泰姆 PWM Dimming,Slope comp.,OCP,UVP,OTP,NuQ嘉泰姆 Hiccup mode for OVP,SLPNuQ嘉泰姆	SOP28/TSSOP18(FD)/TQFN5X5-28NuQ嘉泰姆
