CXSB6609系列由双通道同步整流降压DC-DC转换器和带延迟VD构成。DC-DC转换器是内置了0.35Ω(TYP.)P通道驱动晶体管,及0.35Ω(TYP.)N通道同步整流开关晶体管的降压用同步整流DC/DC转换器。通过降低内置晶体管的导通电阻，能提供高达800mA的高效率,稳定电流。开关频率高达1MHz,能选择小型电感。内置了UVLO欠压锁定(Under Voltage Lock Out)功能，输入电压在1.8V以下（CXSB6609A为2.7V以下）时，强制停止内部驱动晶体管。内置了电压检测器,可以由外置电容任意地设定延迟时间。此外,附带手动复位功能，可以在任意时机送出复位信号。The CXSB6609 series consists of 2 channel synchronous step-down DC/DC converters and a voltage detector with delay circuitK49嘉泰姆
built-in. The DC/DC converter block incorporates a P-channel 0.35Ω (TYP.) driver transistor and a synchronous N-channelK49嘉泰姆
0.35Ω (TYP.) switching transistor. By minimizing ON resistance of the built-in transistors, the CXSB6609 series can deliverK49嘉泰姆
highly efficient and a stable output current up to 800mA. With high switching frequencies of 1MHz, a choice of small inductorK49嘉泰姆
is possible. The series has a built-in UVLO (under-voltage lock-out) function, therefore, the internal P-channel driverK49嘉泰姆
transistor is forced OFF when input voltage becomes 1.8V or lower (for CXSB6609A, 2.7V or lower). The voltage detector blockK49嘉泰姆
can be set delay time freely by connecting an external capacitor. With the manual reset function, the series can output aK49嘉泰姆
reset signal at any time.K49嘉泰姆
产品特点 返回TOPK49嘉泰姆
![](") K49嘉泰姆
应用范围 返回TOPK49嘉泰姆
●DVDs K49嘉泰姆
●Blue-ray Disk K49嘉泰姆
●LCD TVs, LCD modules K49嘉泰姆
●Multifunctional printers K49嘉泰姆
●Photo printers K49嘉泰姆
●Set top boxesK49嘉泰姆
技术规格书（产品PDF) 返回TOP K49嘉泰姆
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！ ![]("http:) K49嘉泰姆

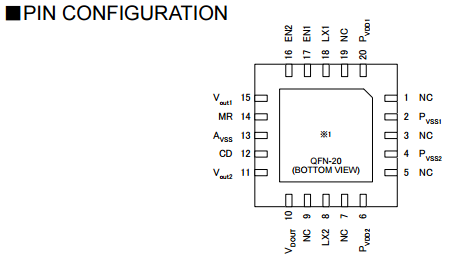

产品封装图 返回TOPK49嘉泰姆
 K49嘉泰姆
电路原理图 返回TOPK49嘉泰姆
 K49嘉泰姆
|
多通道型DC/DC转换器K49嘉泰姆 |
|
产品名称K49嘉泰姆 |
特点/类型K49嘉泰姆 |
封装K49嘉泰姆 |
控制K49嘉泰姆 |
VINK49嘉泰姆
MINK49嘉泰姆 |
VINK49嘉泰姆
MAXK49嘉泰姆 |
VOUTK49嘉泰姆
MINK49嘉泰姆 |
VOUTK49嘉泰姆
MAXK49嘉泰姆 |
IOUTK49嘉泰姆
IINK49嘉泰姆 |
FB/VOUTK49嘉泰姆
电压精度K49嘉泰姆 |
振荡频率K49嘉泰姆 |
限制K49嘉泰姆
电流K49嘉泰姆 |
消耗K49嘉泰姆
电流K49嘉泰姆 |
温度范围K49嘉泰姆 |
|
(V)K49嘉泰姆 |
(V)K49嘉泰姆 |
(V)K49嘉泰姆 |
(V)K49嘉泰姆 |
mAK49嘉泰姆 |
%K49嘉泰姆 |
kHzK49嘉泰姆 |
AK49嘉泰姆 |
μAK49嘉泰姆 |
℃K49嘉泰姆 |
|
CXSB6604K49嘉泰姆 |
升压+升压K49嘉泰姆 |
MSOP10 USP10K49嘉泰姆 |
PWM/PFMK49嘉泰姆 |
0.9K49嘉泰姆 |
10K49嘉泰姆 |
1.5K49嘉泰姆 |
30K49嘉泰姆 |
500K49嘉泰姆 |
±2.0K49嘉泰姆 |
100,180,K49嘉泰姆
300,500K49嘉泰姆 |
|
70K49嘉泰姆 |
-40～＋85K49嘉泰姆 |
|
CXSB6605K49嘉泰姆 |
升压+降压K49嘉泰姆 |
MSOP10 USP10K49嘉泰姆 |
PWM/PFMK49嘉泰姆 |
2K49嘉泰姆 |
10K49嘉泰姆 |
1.5K49嘉泰姆 |
30K49嘉泰姆 |
500K49嘉泰姆 |
±2.0K49嘉泰姆 |
100,300,500K49嘉泰姆 |
|
70K49嘉泰姆 |
-40～＋85K49嘉泰姆 |
|
CXSB6606K49嘉泰姆 |
降压+降压K49嘉泰姆 |
MSOP10 USP10K49嘉泰姆 |
PWM/PFMK49嘉泰姆 |
2K49嘉泰姆 |
10K49嘉泰姆 |
0.9K49嘉泰姆 |
6K49嘉泰姆 |
1000K49嘉泰姆 |
±2.0K49嘉泰姆 |
100,300,500K49嘉泰姆 |
|
60K49嘉泰姆 |
-40～＋85K49嘉泰姆 |
|
CXSB6607K49嘉泰姆 |
升压+反转K49嘉泰姆 |
MSOP10 USP10K49嘉泰姆 |
PWM/PFMK49嘉泰姆 |
2K49嘉泰姆 |
10K49嘉泰姆 |
1.5K49嘉泰姆 |
30K49嘉泰姆 |
500K49嘉泰姆 |
±2.0K49嘉泰姆 |
100,300,500K49嘉泰姆 |
|
90K49嘉泰姆 |
-40～＋85K49嘉泰姆 |
|
CXSB6608K49嘉泰姆 |
降压+反转K49嘉泰姆 |
MSOP10 USP10K49嘉泰姆 |
PWM/PFMK49嘉泰姆 |
2K49嘉泰姆 |
10K49嘉泰姆 |
0.9K49嘉泰姆 |
6K49嘉泰姆 |
1000K49嘉泰姆 |
±2.0K49嘉泰姆 |
100,300,500K49嘉泰姆 |
|
80K49嘉泰姆 |
-40～＋85K49嘉泰姆 |
|
CXSB6609K49嘉泰姆 |
2ch降压+电K49嘉泰姆
压检测器K49嘉泰姆 |
QFN20K49嘉泰姆 |
PWMK49嘉泰姆 |
2.5K49嘉泰姆 |
5.5K49嘉泰姆 |
1.2K49嘉泰姆 |
4K49嘉泰姆 |
800K49嘉泰姆 |
±2.0K49嘉泰姆 |
1000K49嘉泰姆 |
1K49嘉泰姆 |
950K49嘉泰姆 |
-40～＋85K49嘉泰姆 |
|
CXSB6610K49嘉泰姆 |
升压+电压泵x2K49嘉泰姆 |
QFN20K49嘉泰姆 |
PWMK49嘉泰姆 |
2.5K49嘉泰姆 |
5.5K49嘉泰姆 |
5.5K49嘉泰姆 |
19K49嘉泰姆 |
500K49嘉泰姆 |
±1.5K49嘉泰姆 |
ADJK49嘉泰姆 |
1.1K49嘉泰姆 |
2K49嘉泰姆 |
-40～＋85K49嘉泰姆 |
|
CXSB6611K49嘉泰姆 |
2ch升压+反转K49嘉泰姆 |
QFN24K49嘉泰姆 |
PWMK49嘉泰姆 |
2.7K49嘉泰姆 |
5.5K49嘉泰姆 |
4K49嘉泰姆 |
18K49嘉泰姆 |
500K49嘉泰姆 |
±1.5K49嘉泰姆 |
1200K49嘉泰姆 |
2K49嘉泰姆 |
170K49嘉泰姆 |
-40～＋85K49嘉泰姆 |
|
CXSB6612K49嘉泰姆 |
降压+降压K49嘉泰姆 |
USP12B01K49嘉泰姆 |
PWM,PWM/PFMK49嘉泰姆 |
2.7K49嘉泰姆 |
6K49嘉泰姆 |
0.8K49嘉泰姆 |
4K49嘉泰姆 |
600K49嘉泰姆 |
±2.0K49嘉泰姆 |
1200K49嘉泰姆 |
|
22K49嘉泰姆 |
-40～＋85K49嘉泰姆 |
|
CXSB6613K49嘉泰姆 |
降压+LDOK49嘉泰姆 |
USP12B01K49嘉泰姆 |
PWM,PWM/PFMK49嘉泰姆 |
2.7K49嘉泰姆 |
6K49嘉泰姆 |
0.8K49嘉泰姆 |
4K49嘉泰姆 |
600K49嘉泰姆 |
±2.0K49嘉泰姆 |
3000K49嘉泰姆 |
|
22K49嘉泰姆 |
-40～＋85K49嘉泰姆 |
|
CXSB6614K49嘉泰姆 |
降压+Dual LDOK49嘉泰姆 |
USP12B01K49嘉泰姆 |
PWM,PWM/PFMK49嘉泰姆 |
2.7K49嘉泰姆 |
6K49嘉泰姆 |
2.3K49嘉泰姆 |
2.3K49嘉泰姆 |
600K49嘉泰姆 |
±2.0K49嘉泰姆 |
3000K49嘉泰姆 |
|
|
-40～＋85K49嘉泰姆 |
|
CXSB6615K49嘉泰姆 |
降压+LDO+VDK49嘉泰姆 |
USP12B01K49嘉泰姆 |
PWM/PFMK49嘉泰姆 |
2.7K49嘉泰姆 |
6K49嘉泰姆 |
0.8K49嘉泰姆 |
4K49嘉泰姆 |
600K49嘉泰姆 |
±2.0K49嘉泰姆 |
1200；3000K49嘉泰姆 |
|
|
-40～＋85K49嘉泰姆 |
