CXLB7398

CXLB7398是一款适用于单电池锂离子电池的完整恒流/恒压线性充电器。底部有一个热增强的8针SOP包,外部组件数量少,因此CXLB7398非常适合便携式应用。此外,CXLB7398是专门设计的工作在USB电源规格。不需要外部感应电阻,也不需要阻塞二极管,因为内部PMOSFET架构。热反馈调节充电电流,以限制在高功率运行或高环境温度下的模具温度。充电电压固定在4.2V/4.34V,充电电流可以用一个电阻在外部编程。当达到最终浮充电压后,充电电流降至编程值的1/10时,CXLB7398自动终止充电循环。当输入电源(墙壁适配器或USB电源)卸下时,CXLB7398自动进入低电流状态,将电池放电电流降至小于2μa进入关机模式,将电源电流降低至55μA。其他功能包括电池温度监测器、欠压锁定、自动充电和两个状态引脚,以指示充电和充电终止。

电池反向连接保护可编程充电电流1A最终浮充电压后充电电流降至编程值的1/10时自动终止充电循环CXLB7398单电池锂离子电池的完整恒流恒压线性充电器

产品手册

产品订购

产品简介

目录

1.产品概述       2.产品特点     9Mi嘉泰姆

3.应用范围       4.技术规格书下载(PDF文档)9Mi嘉泰姆

5.产品封装       6.电路原理图  9Mi嘉泰姆

7.相关产品9Mi嘉泰姆

   产品概述 返回TOP9Mi嘉泰姆


     CXLB7398 is a complete constant-current/constant voltage linear charger for single cell lithium-ion batteries. With a thermally enhanced 8-PIN SOP package on the bottom and low external component count make the CXLB7398 ideally suited for portable applications. Furthermore the CXLB7398  is specifically designed to work within USB power specifications.No external sense resistor is needed and no blocking diode is required due to the internal PMOSFET architecture .Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature .The charge voltage is fixed at 4.2V / 4.34V, and the charge current can be programmed externally with a single resistor.  The CXLB7398 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached.When the input supply (wall adapter or USB supply) is removed the CXLB7398 automatically enters a low current state dropping the battery drain current to less than 2μA.The    CXLB7398 can be put into shutdown mode reducing the supply current to 55μA.Other features include Battery temperature monitor, under-voltage lockout, automatic recharge and two status pins to indicate charge and charge termination.

 9Mi嘉泰姆

   产品特点 返回TOP9Mi嘉泰姆


●Protection of battery cell reverse connection 9Mi嘉泰姆

● Programmable charge current up to 1A  9Mi嘉泰姆

●No MOSFET sense resistor or blocking diode required 9Mi嘉泰姆

●Complete linear Charger in SOP8 Package for single Cell Lithium-Ion Batteries. 9Mi嘉泰姆

●Constant-Current/Constant-Voltage  operation with thermal regulation to maximize Rate Without risk of overheating. 9Mi嘉泰姆

● Preset 4.2V / 4.34V charge voltage with ±1% accuracy 9Mi嘉泰姆

● Automatic Recharge 9Mi嘉泰姆

● Two Status Indication for Charge status, no battery and battery failure indicators 9Mi嘉泰姆

● C/10 charge termination 9Mi嘉泰姆

● 55μA supply current in shutdown 9Mi嘉泰姆

● 2.9V trickle current charge threshold 9Mi嘉泰姆

● Soft-Start limits inrush current 9Mi嘉泰姆

● Battery Temperature Sensing 9Mi嘉泰姆

   应用范围 返回TOP9Mi嘉泰姆


●Cellular Telephones 9Mi嘉泰姆

●Digital Still Cameras 9Mi嘉泰姆

●MP3 Players 9Mi嘉泰姆

●Bluetooth Applications 9Mi嘉泰姆

●Portable Devices 9Mi嘉泰姆

●USB Bus-Powered Chargers9Mi嘉泰姆

   技术规格书(产品PDF) 返回TOP 9Mi嘉泰姆


     需要详细的PDF规格书请扫一扫微信联系我们,还可以获得免费样品以及技术支持9Mi嘉泰姆

 QQ截图20160419174301.jpg9Mi嘉泰姆

产品封装图 返回TOP9Mi嘉泰姆


blob.png9Mi嘉泰姆
9Mi嘉泰姆

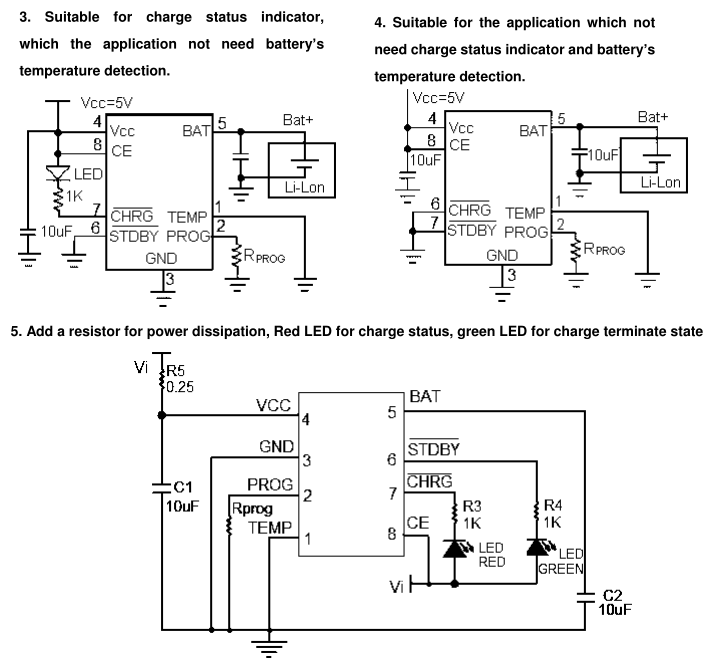

电路原理图 返回TOP9Mi嘉泰姆

 9Mi嘉泰姆


 9Mi嘉泰姆


相关芯片选择指南 返回TOP           更多同类产品。。。。。。


 9Mi嘉泰姆

锂电充电IC9Mi嘉泰姆

型号9Mi嘉泰姆

输入电压9Mi嘉泰姆

输出电压9Mi嘉泰姆

最大充电流9Mi嘉泰姆

待机电流9Mi嘉泰姆

封装9Mi嘉泰姆

CXLB73989Mi嘉泰姆

5V9Mi嘉泰姆

4.2V/4.34V9Mi嘉泰姆

1A9Mi嘉泰姆

55μA9Mi嘉泰姆

SOP-89Mi嘉泰姆

CXLB73999Mi嘉泰姆

9~10V9Mi嘉泰姆

8.49Mi嘉泰姆

1000mA9Mi嘉泰姆

55μA9Mi嘉泰姆

DIP-89Mi嘉泰姆

CXLB731009Mi嘉泰姆

9V9Mi嘉泰姆

4.2V 9Mi嘉泰姆

600mA9Mi嘉泰姆

145uA9Mi嘉泰姆

SOT23-59Mi嘉泰姆

CXLB731019Mi嘉泰姆

10V9Mi嘉泰姆

5V9Mi嘉泰姆

1.2A9Mi嘉泰姆

55μA9Mi嘉泰姆

SOP-89Mi嘉泰姆

CXLB731029Mi嘉泰姆

5V9Mi嘉泰姆

4.2V9Mi嘉泰姆

600mA9Mi嘉泰姆

25uA9Mi嘉泰姆

SOT-23-59Mi嘉泰姆

CXLB731039Mi嘉泰姆

4.75~7V9Mi嘉泰姆

4.2 v9Mi嘉泰姆

500MA9Mi嘉泰姆

55μA9Mi嘉泰姆

SOT-23-6L9Mi嘉泰姆

CXLB731049Mi嘉泰姆

4.25~69Mi嘉泰姆

4.2 v9Mi嘉泰姆

800MA9Mi嘉泰姆

20uA9Mi嘉泰姆

SOT-23 and PSOP-89Mi嘉泰姆

CXLB731059Mi嘉泰姆

9V9Mi嘉泰姆

4.2 v9Mi嘉泰姆

600mA9Mi嘉泰姆

145uA9Mi嘉泰姆

SOT-23-6L9Mi嘉泰姆

CXLB731069Mi嘉泰姆

4.25~6.59Mi嘉泰姆

4.2V9Mi嘉泰姆

800mA9Mi嘉泰姆

25uA 9Mi嘉泰姆

SOT-23-59Mi嘉泰姆

CXLB731079Mi嘉泰姆

4.0~9.09Mi嘉泰姆

4.2V 9Mi嘉泰姆

500mA9Mi嘉泰姆

40uA9Mi嘉泰姆

SOT-23-6L9Mi嘉泰姆

CXLB731089Mi嘉泰姆

9V9Mi嘉泰姆

4.2V 9Mi嘉泰姆

500mA9Mi嘉泰姆

40uA9Mi嘉泰姆

TSOT-239Mi嘉泰姆

CXLB731099Mi嘉泰姆

4.2V~6.5V9Mi嘉泰姆

4.2V 9Mi嘉泰姆

800mA9Mi嘉泰姆

45uA9Mi嘉泰姆

SOT23-59Mi嘉泰姆

CXLB731109Mi嘉泰姆

9-10V9Mi嘉泰姆

8.49Mi嘉泰姆

1A9Mi嘉泰姆

25uA 9Mi嘉泰姆

SOP-8L9Mi嘉泰姆

CXLB731119Mi嘉泰姆

5.59Mi嘉泰姆

4.2V 9Mi嘉泰姆

600mA9Mi嘉泰姆

25uA 9Mi嘉泰姆

SOT-239Mi嘉泰姆

CXLB731129Mi嘉泰姆

4.0~8.09Mi嘉泰姆

4.2V 9Mi嘉泰姆

1A9Mi嘉泰姆

55uA9Mi嘉泰姆

SOP-89Mi嘉泰姆

CXLB731139Mi嘉泰姆

4.5~6.5V9Mi嘉泰姆

4.2V 9Mi嘉泰姆

800mA9Mi嘉泰姆

25μA9Mi嘉泰姆

SOT-23-59Mi嘉泰姆

CXLB731149Mi嘉泰姆

3.6V9Mi嘉泰姆

12V9Mi嘉泰姆

800mA9Mi嘉泰姆

25μA9Mi嘉泰姆

SOT-23-69Mi嘉泰姆

CXLB731159Mi嘉泰姆

8V-36V9Mi嘉泰姆



4.8A9Mi嘉泰姆

25μA9Mi嘉泰姆

SOP-89Mi嘉泰姆

CXLB731169Mi嘉泰姆

5V~16V9Mi嘉泰姆

1.2V~16V9Mi嘉泰姆

2A9Mi嘉泰姆

25μA9Mi嘉泰姆

SOP-89Mi嘉泰姆

CXLB731179Mi嘉泰姆

4.7v-6v9Mi嘉泰姆

4.2V 9Mi嘉泰姆

2A9Mi嘉泰姆

4μA9Mi嘉泰姆

SOP-89Mi嘉泰姆

CXLB731189Mi嘉泰姆

2.3V~5.5V9Mi嘉泰姆



1.5A9Mi嘉泰姆

1μA9Mi嘉泰姆

SOT23-59Mi嘉泰姆
