一,产品概述(General Description)      HYc嘉泰姆
HYc嘉泰姆
      The CXLB7341CS is a complete, cost effective, high- efficient solution for Li-Ion Battery Powered Mobile Supply.HYc嘉泰姆

VBAT is a complete constant-current/constant voltage linear charger for one cell lithium-ion battery. The chargeHYc嘉泰姆

current of pre-charging and constant–current charging is adjustable and it can be programmed to 1A. An external senseHYc嘉泰姆
resistor sets the charge current with high accuracy.VOUT5 (5V) is a step-up DC/DC converter with internal power MOSFETs.HYc嘉泰姆
It achieves 2A (with 2318 NMOSFET) continuous output current over a wide input supply range with excellent load and lineHYc嘉泰姆
regulation. In addition, the CXLB7341CS can be used as a flashlight.HYc嘉泰姆

The CXLB7341SC is available in a low profile TSSOP-16L package and The CXLB7341CSS is available in a low profileHYc嘉泰姆

 SOP-16 package.HYc嘉泰姆

二.产品特点(Features)HYc嘉泰姆
HYc嘉泰姆

        Ø  High Accuracy Linear Li-Lon Battery ChargerHYc嘉泰姆

Ø  Programmable Charge Current up to 1AHYc嘉泰姆

Ø  Fixed Output Voltage: 5VHYc嘉泰姆

Ø  Input Voltage: up to 6V with Suitable MOSFET and Charging CurrentHYc嘉泰姆

Ø  STAT1, STAT2, STAT3, STAT4 Pins: Charging Status Indicators or Indicate the Capacity of Battery when Step-upHYc嘉泰姆

Ø  Flashlight Function with Sink Current up to 35mAHYc嘉泰姆

Ø  Short-Circuit ProtectionHYc嘉泰姆

Ø  Shutdown Step-up if No-LoadHYc嘉泰姆

Ø  Minimal External ComponentsHYc嘉泰姆

Ø  TSSOP-16L(CXLB7341CSC)/SOP-16(CXLB7341CSS) PackageHYc嘉泰姆

三,应用范围 (Applications)HYc嘉泰姆
HYc嘉泰姆

          Ø  Portable Devices and PDAsHYc嘉泰姆

Ø  MP3/MP4 PlayersHYc嘉泰姆

Ø  Wireless HandheldsHYc嘉泰姆

Ø  GPS Receivers, etc.HYc嘉泰姆

四.技术规格书下载（产品PDF）HYc嘉泰姆
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！HYc嘉泰姆

 HYc嘉泰姆

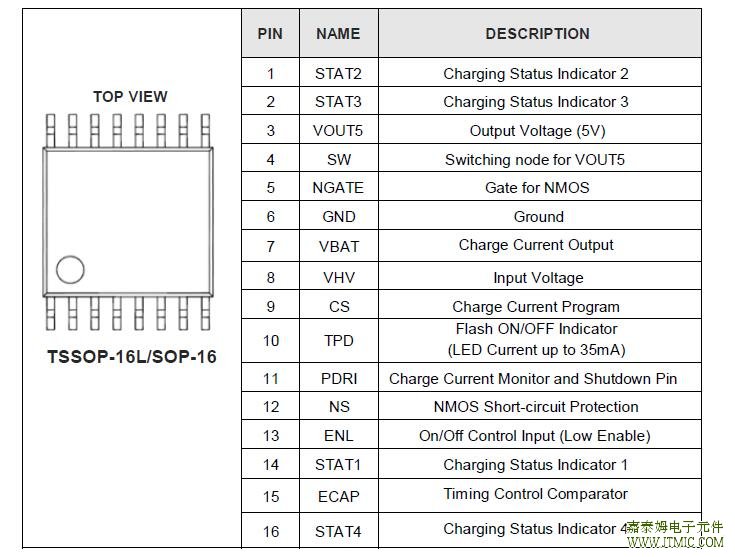

五,产品封装图 (Package)HYc嘉泰姆
HYc嘉泰姆
HYc嘉泰姆

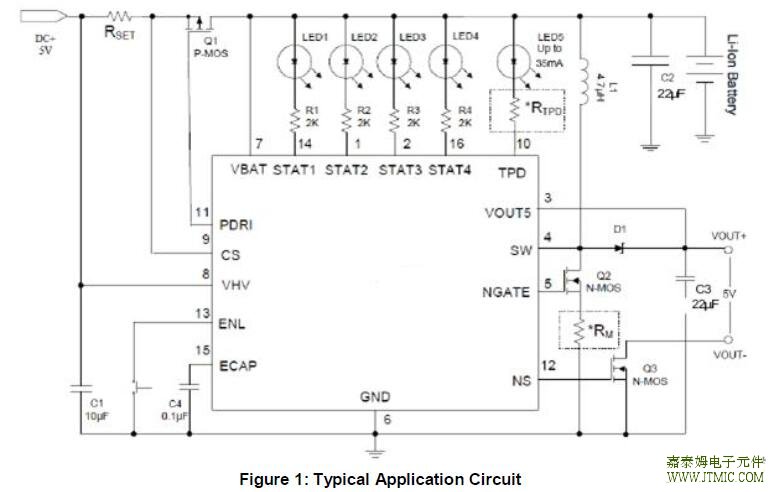

六.电路原理图HYc嘉泰姆
HYc嘉泰姆
HYc嘉泰姆
七,功能概述HYc嘉泰姆
HYc嘉泰姆
VIN Voltage ……………………………………………….…………………….………….…… -0.3V ～ 15VHYc嘉泰姆
ENL, SW, PDRI Pin Voltages…………………………………………….…………….………-0.3V ～ 6.5VHYc嘉泰姆
SW Pin Current…..…………………………………………………………………………………………….4AHYc嘉泰姆
Operating Temperature Range (Note 2)......................................................................... –40℃ ～ +85℃HYc嘉泰姆
Operating Junction Temperature ………...................................................................... –40℃ ～+125℃HYc嘉泰姆
Storage Temperature Range ……………………………………………........................ –65℃ ～ +125℃HYc嘉泰姆
Lead Temperature (Soldering, 10 sec)........................................................................................ +265℃HYc嘉泰姆
