CXLB7386是一个集成USB电源开关，带有boost转换器，可满足USB 5V的要求从2V到5V输入电源的电源要求。功能包括USB兼容电源输出、输出开关启用、热关机和电流限制。USB电源
开关是一个集成的200mΩ电源开关，限流保护为1.4A。升压转换器输出是一个辅助3V至5.5V输出功率附加负载。它的负载电流可以由一个低至130mA高至2000毫安。它可以在稳定的波形下工作，无需外部补偿
[ 产品资料下载 ]
产品技术资料帮助
查看全部>
目录
1.产品概述 2.产品特点
3.应用范围 4.下载产品资料PDF文档
5.产品封装图 6.电路原理图
7.功能概述 8.相关产品
一,产品概述(General Description)
The CXLB7386 is an integrated USB power switch with boost converter to meet USB 5V
power requirements from a 2V to 5V input supply. The features include a USB compliant
power output, output switch enable, thermal shutdown and current limit.The USB power
switch is an integrated 200mΩ power switch with current limiting protection at 1.4A.
The boost converter output is an auxiliary 3V to 5.5V output to power additional loads.
Its Load current can program by an external resistor from as low as 130mA to as high as
2000mA. It can operate in stable waveforms without external compensation.
The CXLB7386 is available in tiny 10-Pin MSOP Package.
二.产品特点(Features)
Integrated Synchronous Boost Converter and USB Current-Limit Power Switch
Low Quiescent Current: 230μA
Wide Input Voltage Range: 2V to 5V
USB Current Limiting at 1.4A
Auxiliary Output VOUT1: 3V to 5.5V
Efficiency up to 90%
MSOP-10L Package
三,应用范围 (Applications)
Ø Battery-Powered Equipment
Ø Motherboard USB Power Switch
Ø Hot-Plug Power Supplies
Ø Battery-Charger Circuits
Ø USB Device Power Switch
Ø DSC
Ø LCD Panel
Ø Wireless Equipment
四.技术规格书下载（产品PDF）
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

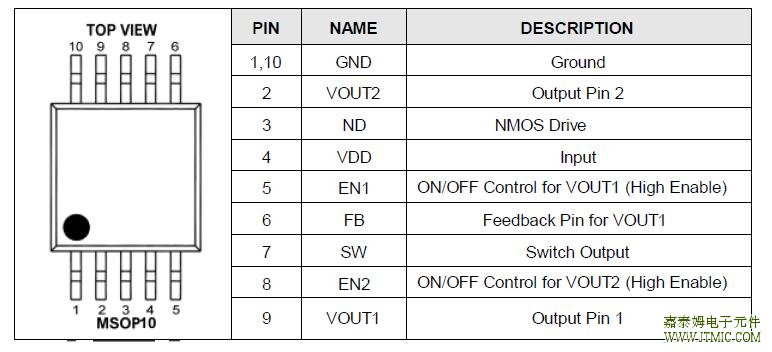

五,产品封装图 (Package)

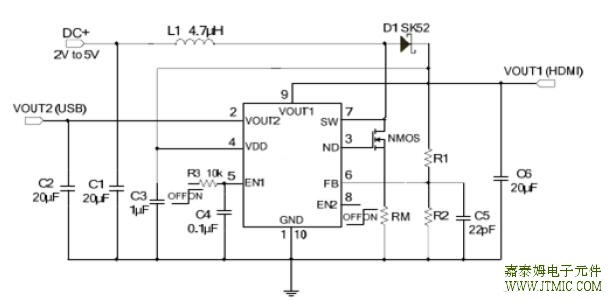

六.电路原理图
七,功能概述
Supply Voltage…………………………….…………………………………………….…−0.3V ～ 6V
SW Pin Switch Voltage……………………..………………………………………………−0.3V ～ 28V
Other I/O Pin Voltages………………………….……………………………………………−0.3V ～ 6V
SW Pin Switch Current ………………………………………………………………...………………..3A
Operating Temperature(Note 2)………………………………………………………….-40℃ ～ +85℃
Operating Junction Temperature…………………………………………..……………-40℃ ～ +125℃
Storage Temperature Range ………………………………………………………….−65℃ ～ +150℃
Lead Temperature……………………………………………………………………………………+265℃
八,相关芯片选择指南 更多同类产品......
|
Model |
VIN (V) |
VOUT (V) |
I |
Package |
|
2V to 5V |
3V to 5.5V |
1.4A |
MSOP-10L |
|
|
6V |
5V |
700mA |
QFN(4*4-24) |
|
|
6V |
5V |
1A |
TSSOP-16L/SOP-16 |
|
|
6V |
5.05V |
2A |
SSOP-16L |
