CXLB7203G

CXLB7203G是一款适用于单电池锂离子电池的完整恒流/恒压线性充电器。它的封装和较低的外部组件数量使CXLB7203G非常适合便携式应用。此外,CXLB7203G是专门为在USB电源规格下工作而设计的。充电电压固定在4.22V,充电电流可通过一个电阻器进行外部编程。当充电电流降至编程值的1/10时,CXLB7203G自动终止充电循环达到最终浮充电压后的值

CXLB7203G可编程充电电流900mA单电池锂离子电池的完整恒流恒压线性充电器自动充值2.8V涓流充电阈值自动终止充电循环达到最终浮充电压后的值

产品手册

产品订购

产品简介

目录Kbq嘉泰姆

1.产品概述                       2.产品特点Kbq嘉泰姆
3.应用范围                       4.下载产品资料PDF文档 Kbq嘉泰姆
5.产品封装图                     6.电路原理图                   Kbq嘉泰姆
7.功能概述                        8.相关产品Kbq嘉泰姆

一,产品概述(General Description)      Kbq嘉泰姆
Kbq嘉泰姆
   The CXLB7203G is a complete constant current /constant voltage linear charger for single cell lithium-ion batteries.Kbq嘉泰姆

 Its package and low external component count make the CXLB7203G ideally suited for portable applications. Furthermore, Kbq嘉泰姆

the CXLB7203G is specifically designed to work within USB power specifications.Kbq嘉泰姆

The charge voltage is fixed at 4.22V, and the charge current can be programmed externally with a single resistor.Kbq嘉泰姆

 The CXLB7203G automatically terminates the charge cycle when the charge current drops to 1/10th the programmed Kbq嘉泰姆

value after the final float voltage is reached.Kbq嘉泰姆

The CXLB7203G converters are available in the industry standard SOP8-PP power packages (or upon request).Kbq嘉泰姆

二.产品特点(Features)Kbq嘉泰姆
Kbq嘉泰姆

Ø  Programmable Charge Current up to 900mAKbq嘉泰姆

Ø  No MOSFET, Sense Resistor or Blocking Diode RequiredKbq嘉泰姆

Ø  Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge RateKbq嘉泰姆

Ø  Charges Single Cell Li-Ion Batteries Directly from USB PortKbq嘉泰姆

Ø  Preset 4.22V Charge Voltage with 1% AccuracyKbq嘉泰姆

Ø  Automatic RechargeKbq嘉泰姆

Ø  2.8V Trickle Charge ThresholdKbq嘉泰姆

Ø  Available in SOP8-PP PackageKbq嘉泰姆

三,应用范围 (Applications)Kbq嘉泰姆
Kbq嘉泰姆

Ø  Charger for Li-Ion Coin Cell BatteriesKbq嘉泰姆

Ø  Portable MP3 Players, Wireless HeadsetsKbq嘉泰姆

Ø  Multifunction WristwatchesKbq嘉泰姆

Ø  Bluetooth ApplicationsKbq嘉泰姆

四.技术规格书下载(产品PDF)Kbq嘉泰姆
 需要详细的PDF规格书请扫一扫微信联系我们,还可以获得免费样品以及技术支持Kbq嘉泰姆

 QQ截图20160419174301.jpgKbq嘉泰姆

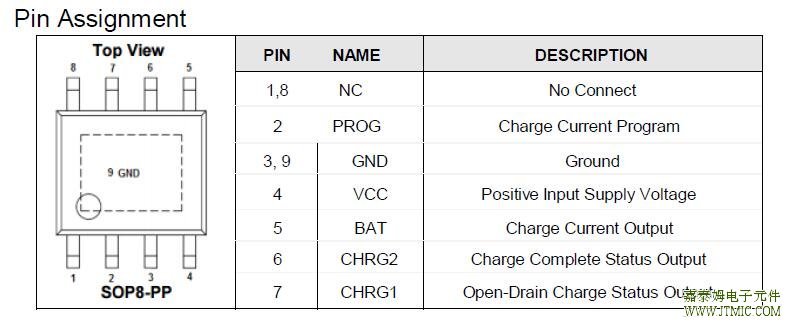

五,产品封装图 (Package)Kbq嘉泰姆
Kbq嘉泰姆
Kbq嘉泰姆
六.电路原理图Kbq嘉泰姆
Kbq嘉泰姆
Kbq嘉泰姆
七,功能概述Kbq嘉泰姆
Kbq嘉泰姆
Input Supply Voltage (VCC) ...................................................................................... –0.3V ~ 7VKbq嘉泰姆
PROG.......................................................................................................... –0.3V ~ VCC + 0.3VKbq嘉泰姆
BAT ...........................................................................................................................–0.3V ~ 7VKbq嘉泰姆
CHRG1, CHRG2........................................................................................................–0.3V ~ 7VKbq嘉泰姆
BAT Pin Current ................................................................................................................ 1AKbq嘉泰姆
Maximum Junction Temperature ....................................................................................... +150℃Kbq嘉泰姆
Operating Ambient Temperature Range (Note 2)................................................–40℃ ~ +85℃Kbq嘉泰姆
Storage Temperature Range ……………………………………………...............–65℃ ~ +125℃Kbq嘉泰姆
Lead Temperature (Soldering, 10 sec)............................................................................... +265℃Kbq嘉泰姆
八,相关芯片选择指南             更多同类产品......Kbq嘉泰姆

Kbq嘉泰姆

单节锂电池充电管理ICKbq嘉泰姆

ModelKbq嘉泰姆

VIN (V)Kbq嘉泰姆

VOUT (V)Kbq嘉泰姆

IOUTKbq嘉泰姆

PackageKbq嘉泰姆

ISLEEPKbq嘉泰姆

CXLB7257Kbq嘉泰姆

4.7V ~ 6VKbq嘉泰姆

4.22VKbq嘉泰姆

1AKbq嘉泰姆

SOP-8LKbq嘉泰姆

20Kbq嘉泰姆

CXLB7257BKbq嘉泰姆

4.7V ~ 6VKbq嘉泰姆

4.22VKbq嘉泰姆

1.5AKbq嘉泰姆

SOP-8LKbq嘉泰姆

20Kbq嘉泰姆

CXLB7257CKbq嘉泰姆

4.7V ~ 6VKbq嘉泰姆

4.22VKbq嘉泰姆

1.8AKbq嘉泰姆

SOP-8LKbq嘉泰姆

20Kbq嘉泰姆

CXLB7201Kbq嘉泰姆

4.7V ~ 6VKbq嘉泰姆

4.22VKbq嘉泰姆

700mAKbq嘉泰姆

SOT-23Kbq嘉泰姆

20Kbq嘉泰姆

CXLB7201BKbq嘉泰姆

4.7V ~ 6VKbq嘉泰姆

4.22VKbq嘉泰姆

1000mAKbq嘉泰姆

SOT-23Kbq嘉泰姆

20Kbq嘉泰姆

CXLB7201FKbq嘉泰姆

4.7V ~ 6VKbq嘉泰姆

4.2V Kbq嘉泰姆

1AKbq嘉泰姆

SOT-23 Kbq嘉泰姆

20Kbq嘉泰姆

CXLB7202CKbq嘉泰姆

4.7V ~ 6VKbq嘉泰姆

4.22VKbq嘉泰姆

1000mAKbq嘉泰姆

SOT-23Kbq嘉泰姆

20Kbq嘉泰姆

CXLB7202Kbq嘉泰姆

4.7V ~ 6VKbq嘉泰姆

4.22VKbq嘉泰姆

900mAKbq嘉泰姆

SOP8Kbq嘉泰姆

20Kbq嘉泰姆

CXLB7203GKbq嘉泰姆

4.7V ~ 6VKbq嘉泰姆

4.22VKbq嘉泰姆

900mAKbq嘉泰姆

SOP8Kbq嘉泰姆

20Kbq嘉泰姆

CXLB7385Kbq嘉泰姆

4.5~5.5Kbq嘉泰姆

4.2VKbq嘉泰姆

800mAKbq嘉泰姆

DFN3*3-10LKbq嘉泰姆

20Kbq嘉泰姆
