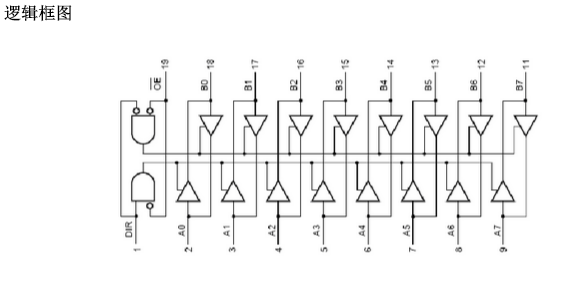

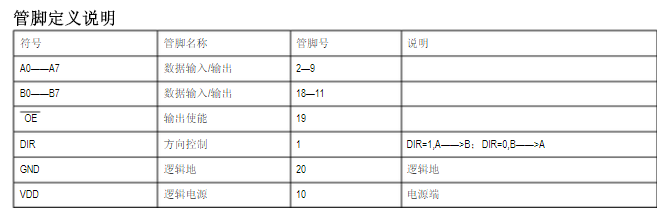

JTSM245,JTSM74HC245D,JTSM74HC245P,JTSM245N,JTSM245TS高速CMOS器件,引脚兼容低功耗肖特基TTL(LSTTL)系列,三态输出、八路信号双向收发器，有两个控制端(OE 、DIR),其中DIR为数据流向控制端，当DIR为高电平时，数据流向为A——>B；当DIR为低电平时，数据流向为B——>A；OE 为输出状态控制端，当OE 为高电平时，输出为高阻态；

IC Name

Description

Supply   Voltage

Transmission   Delay

Transmission   Attenuation

ESD(HBM)

Package

JTSW245

Octal bus   transceiver; 3-state

3.0V~5.5V

<12ns

<2ns

8KV

SOP20   SOP20-2 TSSOP20 DIP20 QFN20

JTSW4953C

Dual P-Channel   Enhancement Mode Mosfet

-

-

-

-

SOP8

JTSW4953D

Dual P-Channel   Enhancement Mode Mosfet(BVDS=20V)

-

-

-

-

SOP8

JTSW4953K

Dual P-Channel   Enhancement Mode Mosfet(BVDS=20V)

-

-

-

-

SOP8

JTSW245N

Octal bus   transceiver; 3-state

3.0V~5.5V

<12ns

<2ns

8KV

SOP20   SOP20-2 TSSOP20 DIP20

JTSM4051B

8-channel   multiplexer

3.0V~5.5V

-

-

8KV

TSSOP16

JTSM4052B

Dual 4-channel   multiplexer

3.0V~5.5V

-

-

8KV

TSSOP16

JTSM4853

LED display   screen driver

3.0V~5.5V

-

-

8KV

TSSOP20

JTSM5166PB

3-to-8 Line   Decoder & 8 P-channel enhancement mode mosfet

3.03V~5.5V

-

-

4KV

SOP16

JTSM74HC04

Hex invertors

3.0V~5.5V

<10ns

<2ns

8KV

SOP14

JTSM74HC123

Dual   retriggerable monostable multivibrator

3.0V~5.5V

-

-

8KV

SOP16

JTSM74HC138

3-to-8 Line   Decoder

3.0V~5.5V

-

-

8KV

SOP16   QFN16
