JTBM78XX regulators employ internal current-limiting and thermal-shutdown, making them essentially indestructible. They can deliver up to 1000mA output JTBM7805 can continuously output 1.0A when +8V

                          目录

   1.产品概述      2.产品特点      3.应用范围     4.技术规格书下载（PDF文档）

   5.产品封装      6.电路原理图     7.相关产品

一.产品概述

  JTBM78XX regulators employ internal current-limiting and thermal-shutdown, making them essentially indestructible. They can deliver up to 1000mA output JTBM7805 can continuously output 1.0A when +8V input JTBM7805 TO220 and TO263 can output 0.8A when +12V input

二.产品特点

 z Maximum Output Current of >1000mA (Tc=25°C)

 z Internal Short-Circuit Current Limiting

 z Internal Thermal Overload Protection

 z 3% Output Tolerance

 z TO252,TO263,TO220 Package

三.应用范围

 z LCD-TV tuner

 z Car electronics

四.技术规格书（产品PDF)

需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

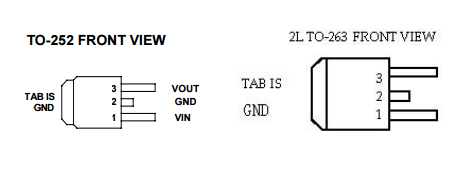

五.产品封装图

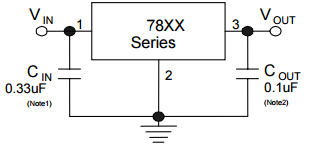

六.电路原理图
