Dual N-Channel, 20V, 6A, Power MOSFET The JTMD2178 is Dual N-Channel enhancement MOS Field Effect Transistor and connecting the Drains on the circuit board is not required because the Drains of the M
目录
1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（PDF文档）
The JTMD2178 is Dual N-Channel enhancement MOS Field Effect Transistor and connecting the Drains on the circuit board is not required because the Drains of the MOSFET1 and the MOSFET2 are internally connected. Uses advanced trench technology and design to provide excellent RSS(ON) with low gate charge. This device is designed for Lithium-Ion battery protection circuit. The JTMD2178 is available in DFN2X2-4L package. Standard Product JTMD2178 is Pb-free and Halogen-free.
Trench Technology
Supper high density cell design
Excellent ON resistance for higher DC current
Extremely Low Threshold Voltage

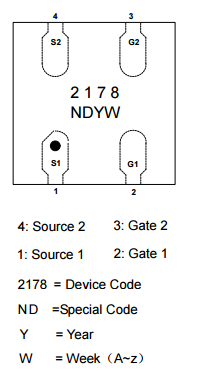

Small package DFN2X2-4L
Lithium-Ion battery protection circuit
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
| 场效应晶体管 | |||||||||||||
Pro duct | Config uration | Cha nnel | Drain-Source | Gate-Source | Gate Threshold | Drain-to-Source | Drain-to-Source | Input Capa citance | Con tinuous | Power Diss ipation | Body Diode | Body Diode | Pa ckage |
Vol tage | Vo ltage | Vo ltage | On-Resis tance | On-Resis tance | CISS | Drain Current | PD(@TA = 25°C) | Forward Voltage | Forward Vo ltage | ||||
| VDS | VGS | VGS(th) | RDS(ON)@(VGS = 4.5V) | RDS(ON)@(VGS = 4.5V) | (pF) (Typ.) | ID (@TA = 25°C) | (W) (Max.) | VSD | VSD | ||||
| (V) (Max.) | (V) (Max.) | (V) (Max.) | (Ω) (Typ.) | (Ω) (Max.) | (A) (Max.) | (V) (Typ.) | (V) (Max.) | ||||||
| JTPM9435A | P-Channel MOSFET | 1 | -30 | ±20 | -3 | 0.043 | 0.066 | 1120 | -5.4 | 1.9 | -0.8 | -1.5 | SOP-8L |
| JTPMD2084 | P-Channel MOSFET | 2 | -20 | ±10 | -1 | 0.08 | 0.12 | 444 | -3.3 | 2 | -0.8 | -1.5 | DFN2020-6L |
| JTPM6207 | P-Channel MOSFET | 1 | -20 | ±12 | -1 | 0.025 | 0.03 | 2260 | -5.7 | 1.2 | - | -1.2 | SOT-23-3 |
| JTNM01N11 | N-Channel MOSFET | 1 | 110 | ±20 | 2.5 | 0.25 | 0.35 | 300 | 1.8 | 1.78 | 0.8 | 1.2 | SOT-23-6L |
| JTMD2078 | N-Channel MOSFET | 2 | 20 | ±12 | 1 | 0.42 | 0.6 | 30 | 0.56 | 0.41 | 0.85 | 1.5 | SOT-363 |
| JTCR650N60TG | N-Channel MOSFET | 1 | 600 | ±30 | 4.5 | 0.55 | 0.65 | 403 | 7.3 | 62.5 | 1.5 | TO-252E-2 | |
| JTCR650N60TF | N-Channel MOSFET | 1 | 600 | ±30 | 4.5 | 0.55 | 0.65 | 403 | 7.3 | 27.7 | 1.5 | TO-220F | |
| JTCR470N60TF | N-Channel MOSFET | 1 | 600 | ±30 | 4.5 | 0.42 | 0.47 | 547 | 9.4 | 29.8 | 1.5 | TO-220F | |
| JTCR380N60TG | N-Channel MOSFET | 1 | 600 | ±30 | 4.5 | 0.36 | 0.38 | 656 | 10.6 | 83 | 1.5 | TO-252E-2 | |
| JTCR380N60TF | N-Channel MOSFET | 1 | 600 | ±30 | 4.5 | 0.36 | 0.38 | 656 | 10.6 | 31.2 | 1.5 | TO-220F | |
| JTNMD2178 | N-Channel MOSFET | 2 | 20 | ±12 | 1 | 0.012 | 0.016 | 1240 | 6 | - | - | 1.5 | DFN2020-4L |
| JTNM01N10 | N-Channel MOSFET | 1 | 100 | ±20 | 2.5 | 0.255 | 0.35 | 350 | 1.7 | 1.6 | 0.8 | 1.2 | SOT-23 |
| JTMD2076 | N-Channel MOSFET | 2 | -20 | ±12 | -1 | 0.071 | 0.09 | 471 | -4.62 | 1.92 | -0. 76 | -1.2 | SOP-8L |
| JTMD2180 | N-Channel MOSFET | 2 | 20 | ±10 | 1 | 0.0095 | 0.014 | 1188 | 11 | 1.7 | 0.75 | 1.5 | PDFN3×3-8L |
| JTNM2077 | N-Channel MOSFET | 1 | 20 | ±10 | 1 | 0.42 | 0.6 | 30 | 0.54 | 0.36 | 0.85 | 1.5 | SOT-723 |
| JTNM3019 | N-Channel MOSFET | 1 | 30 | ±20 | 1.5 | 1.3 | 4 | 36 | 0.25 | 0.37 | 0.8 | 1.5 | SOT-523 |
| JTPM2049B | P-Channel MOSFET | 1 | -20 | ±5 | -0.85 | 0.44 | 0.7 | 74.5 | -0.51 | 0.31 | -0.65 | -1.1 | DFN1006-3L |
| JTPM2049 | P-Channel MOSFET | 1 | -20 | ±5 | -0.85 | - | 0.85 | 74.5 | -0.51 | 0.31 | - | -1.5 | DFN1006-3L |
| JTNM07N65F | N-Channel MOSFET | 1 | 650 | ±30 | 5 | 1 | 1.2 | 930 | 7 | 34 | 0.74 | 1.5 | TO-220F |
| JTNM2072 | N-Channel MOSFET | 1 | 20 | ±5 | 0.85 | 0.22 | 0.42 | 50.6 | 0.66 | 0.27 | 0.7 | 1.1 | DFN1006-3L |
| JTNM2046B | N-Channel MOSFET | 1 | 20 | ±5 | 0.85 | 0.22 | 0.42 | 50.6 | 0.71 | 0.32 | 0.7 | 1.1 | DFN1006-3L |
| JTCM2068 | N + P channel MOSFET | 2 | 20/-20 | ±8 | 1/-1 | 0.033/0.085 | 0.046/0.116 | 345/531 | 4.4/-2.8 | 0.72 | 0.7/-0.8 | 1.5/-1.5 | SOT-23-6L |
| JTNM12N65 | N-Channel MOSFET | 1 | 650 | ±30 | 5 | 0.57 | 0.7 | 1670 | 12 | 192 | 0.7 | 1.5 | TO-220 |
| JTNM07N60 | N-Channel MOSFET | 1 | 600 | ±30 | 5 | 1 | 1.2 | 930 | 7 | 156 | 0.74 | 1.5 | TO-220 |
| JTNM6002 | N-Channel MOSFET | 1 | 60 | ±20 | 2 | 1.7 | 2.6 | 23.37 | 0.3 | 0.37 | 0.9 | 1.5 | SOT-323 |
| JTPM3005 | P-Channel MOSFET | 1 | -30 | ±20 | -2.5 | 0.083 | 0.09 | 670 | -4.1 | 1.4 | -0.78 | -1.5 | SOT-23-3L |
| JTNM3017 | N-Channel MOSFET | 1 | 30 | ±20 | 1.5 | 0.021 | 0.033 | 834 | 6.2 | 1.4 | 0.85 | 1.5 | DFN2X2-6L |
| JTMD2176 | N-Channel MOSFET | 2 | 20 | ±10 | 1 | 0.055 | 0.09 | 190 | 2.6 | 0.9 | - | 1.5 | SOT-23-6L |
| JTCM2007 | N + P channel MOSFET | 2 | 20/-20 | ±6 | 0.9/-0.9 | 0.18/0.45 | 0.31/0.81 | 90/65.8 | 0.79/-0.5 | 0.29 | 0.74/-0.8 | 1.5/-1.5 | SOT-563 |
| JTCM2002 | N + P channel MOSFET | 2 | 20/-20 | ±6 | 0.9/-0.9 | 0.23/0.52 | 0.31/0.81 | 50/74.5 | 0.8/-0.59 | 0.31/0.29 | 0.7/-0.65 | 1.5/-1.5 | SOT-363 |
| JTCM2001 | N + P channel MOSFET | 2 | 20/-20 | ±6/±8 | 0.85/-1.0 | 0.18/0.085 | 0.31/0.12 | 50/470 | 0.65/-3.1 | 1.5 | 0.5/-0.5 | 0.7/-0.7 | DFN2 x 2-6L |
| JTMD3002 | P-Channel MOSFET | 2 | -30 | ±20 | -2.5 | 0.07 | 0.09 | 670 | -3.8 | 1.1 | -0.78 | -1.5 | SOP-8L |
| JTMD2013 | P-Channel MOSFET | 2 | -20 | ±6 | -0.9 | 0.55 | 0.81 | 74.5 | -0.56 | 0.29 | -0.65 | -1.5 | SOT-563 |
| JTMD2010 | P-Channel MOSFET | 2 | -20 | ±12 | -1 | 0.075 | 0.12 | 470 | -3.1 | 1.5 | -0.85 | -1.5 | DFN 6 |
| JTPM9435 | P-Channel MOSFET | 1 | -30 | ±20 | -3 | 0.053 | 0.066 | 710 | -5.5 | 2 | -0.79 | -1.5 | SOP-8P |
| JTPM5001 | P-Channel MOSFET | 1 | -50 | ±20 | -2 | 3.5 | 10 | 66.7 | -0.2 | 0.4 | -0.9 | -1.5 | SOT-23 |
| JTPM4803 | P-Channel MOSFET | 2 | -30 | ±20 | -3 | 0.053 | 0.066 | 680 | -5.5 | 2 | -0.79 | -1.5 | SOP-8P |
| JTPM4801 | P-Channel MOSFET | 2 | -30 | ±12 | -1.4 | 0.045 | 0.06 | 560 | -5.6 | 2 | -0.75 | -1.5 | SOP-8P |
| JTPM3407 | P-Channel MOSFET | 1 | -30 | ±20 | -3 | 0.053 | 0.066 | 950 | -3.7 | 1 | -0.79 | -1.5 | SOT-23-3 |
| JTPM3401 | P-Channel MOSFET | 1 | -30 | ±12 | -1.5 | 0.043 | 0.056 | 1250 | -4.6 | 1.3 | -0.75 | -1.5 | SOT-23-3L |
| JTPM3012 | P-Channel MOSFET | 1 | -30 | ±20 | -2.5 | 0.08 | 0.095 | 654 | -2.9 | 0.8 | -0.8 | -1.5 | SOT-23 |
| JTPM3004 | P-Channel MOSFET | 1 | -30 | ±20 | -2.5 | 0.079 | 0.09 | 670 | -3.8 | 1.2 | -0.78 | -1.5 | SOP-8L |
| JTPM2341A | P-Channel MOSFET | 1 | -20 | ±12 | -1 | 0.052 | 0.061 | 700 | -3.5 | 0.75 | -0.8 | - | SOT23-3 |
| JTPM2341 | P-Channel MOSFET | 1 | -20 | ±8 | -1 | 0.052 | 0.061 | 700 | -3.5 | 0.75 | -0.8 | - | SOT23-3 |
| JTPM2065 | P-Channel MOSFET | 1 | -20 | ±8 | -1 | 0.017 | 0.024 | 2026 | -6.2 | 1.4 | -0.8 | -1.5 | DFN 2X2-6L |
| JTPM2048 | P-Channel MOSFET | 1 | -20 | ±12 | -1 | 0.096 | 0.135 | 331 | -2.2 | 0.7 | -0.79 | -1.5 | SOT-23 |
| JTPM2031 | P-Channel MOSFET | 1 | -20 | ±5 | -0.81 | 0.495 | 0.853 | 74.5 | -0.6 | 0.36 | -0.75 | -1.5 | SOT-723 |
| JTPM2026 | P-Channel MOSFET | 1 | -20 | ±12 | -1 | 0.056 | 0.065 | 1130 | -2.9 | 0.8 | -0.62 | -1.5 | SOT-23 |
| JTPM2019 | P-Channel MOSFET | 1 | -20 | ±5 | -0.9 | 0.48 | 0.81 | 74.5 | -0.62 | 0.28 | -0.65 | -1.5 | SOT-523 |
| JTPM2015 | P-Channel MOSFET | 1 | -20 | ±8 | -0.81 | 0.081 | 0.11 | 534 | -2.2 | 0.8 | -0.74 | -1.5 | SOT-23 |
| JTPM2014 | P-Channel MOSFET | 1 | -20 | ±8 | -0.9 | 0.05 | 0.06 | 1200 | -4.1 | 1.4 | -0.74 | -1.5 | DFN2 x 2-6L |
| JTPM2006 | P-Channel MOSFET + Schottky Diode | 1 | -20 | ±8 | -1 | 0.09 | 0.12 | 480 | -3 | 1.45 | -0.07 | -1.5 | DFN2x2-6L |
| JTPM2005B | P-Channel MOSFET + Schottky Diode | 1 | -20 | ±8 | -0.81 | - | 0.12 | 300 | -2.7 | 1.1 | - | -1.5 | DFN3X2-8L |
| JTPM2005 | P-Channel MOSFET + Schottky Diode | 1 | -20 | ±8 | -0.81 | - | 0.12 | 700 | -2.9 | 1.4 | - | -1.5 | DFN3X2-8L |
| JTPM1488 | P-Channel MOSFET | 1 | -12 | ±8 | -0.85 | 0.08 | 0.12 | 607 | -1.5 | 0.44 | -0.8 | -1.5 | SOT-323 |
| JTPM1485 | P-Channel MOSFET | 1 | -12 | ±8 | -0.95 | 0.015 | 0.019 | 2620 | -7.4 | 1.8 | -0.88 | -1.5 | DFN2X2-6L |
| JTPM1483 | P-Channel MOSFET | 1 | -12 | ±8 | -0.85 | 0.031 | 0.037 | 1152 | -3.5 | 0.74 | -0.8 | -1.5 | SOT-23 |
| JTPM1481 | P-Channel MOSFET | 1 | -12 | ±12 | -0.9 | 0.022 | 0.026 | 1880 | -5.1 | 1.9 | -0.76 | -1.5 | DFN2X2-6L |
| JTPM1480 | P-Channel MOSFET | 1 | -20 | ±8 | -1 | 0.11 | 0.255 | 480 | -1.4 | 0.29 | -0.79 | -1.5 | SOT-323 |
| JTMD6003 | N-Channel MOSFET | 2 | 60 | ±20 | 2 | 1.7 | 2.6 | 23.37 | 0.3 | 0.37 | 0.9 | 1.5 | SOT-563 |
| JTMD3014 | N-Channel MOSFET | 2 | 30 | ±20 | 2.2 | 0.033 | 0.041 | 580 | 6.8 | 1.9 | 0.95 | 1.5 | SOP-8L |
| JTMD2179 | N-Channel MOSFET | 2 | 20 | ±10 | 1 | 0.0175 | 0.021 | 800 | 6.3 | 1.1 | 0.75 | 1.5 | TSOT-23-6L |
| JTNMD2174 | N-Channel MOSFET | 2 | 12 | ±10 | 1.2 | 0.019 | 0.025 | 1313 | 6 | - | 0.9 | 1.5 | CSP 4L |
| JTNMD2173 | N-Channel MOSFET | 2 | 20 | ±12 | 1 | 0.026 | 0.031 | 1240 | 6 | - | - | 1.5 | CSP 4L |
| JTMD2172 | N-Channel MOSFET | 2 | 20 | ±10 | 1 | 0.015 | 0.02 | 1371 | 7 | 1.4 | 0.65 | 1.5 | TSSOP-8L |
| JTMD2171 | N-Channel MOSFET | 2 | 20 | ±12 | 1 | 0.036 | 0.045 | 1210 | 6 | - | - | 1.5 | CSP 4L |
| JTMD2168 | N-Channel MOSFET | 2 | 20 | ±10 | 1 | 0.022 | 0.028 | 680 | 5.1 | 1.1 | 0.78 | 1.5 | TSSOP-8 |
| JTMD2166 | N-Channel MOSFET | 2 | 20 | ±10 | 1 | 0.022 | 0.027 | 680 | 5 | 1.1 | 0.78 | 1.5 | SOT-23-6L |
| JTMD2165 | N-Channel MOSFET | 2 | 60 | ±20 | 2 | 1.7 | 2.6 | 23.37 | 0.32 | 0.41 | 0.9 | 1.5 | SOT-363 |
| JTMD2162 | N-Channel MOSFET | 2 | 20 | ±10 | 1 | 0.016 | 0.022 | 1371 | 4.8 | 1.7 | 0.65 | 1.5 | PDFN2.9X2.8-8L |
| JTMD2160 | N-Channel Mosfet | 2 | 20 | ±10 | 1 | 0.0157 | 0.021 | 800 | 6.3 | 1.1 | 0.65 | 1.5 | SOT-23-6L |
| JTMD2158 | N-Channel MOSFET | 2 | 20 | ±10 | 1 | 0.0148 | 0.019 | 800 | 7 | 1.4 | 0.65 | 1.5 | TSSOP-8L |
| JTMD2154 | N-Channel MOSFET | 2 | 20 | ±6 | 0.85 | 0.22 | 0.31 | 60 | 0.88 | 0.37 | 0.7 | 1.5 | SOT-563 |
| JTMD2153 | N-Channel Mosfet | 2 | 20 | ±6 | 0.85 | 0.22 | 0.31 | 50 | 0.89 | 0.38 | 0.7 | 1.5 | SOT-363 |
| JTNM6001 | N-Channel MOSFET | 1 | 60 | ±20 | 2 | 1.7 | 2.6 | 23.37 | 0.5 | 0.69 | 0.9 | 1.5 | SOT-23 |
| JTNM4153 | N-Channel MOSFET | 1 | 20 | ±6 | 1 | 0.22 | 0.31 | 68 | 0.88 | 0.37 | 0.7 | 1.5 | SOT-523 |
| JTNM4006 | N-Channel MOSFET | 1 | 45 | ±20 | 1.5 | 0.142 | 0.18 | 315 | 1.7 | 0.8 | 0.8 | 1.5 | SOT-23 |
| JTNM4002 | N-Channel MOSFET | 1 | 20 | ±6 | 1 | 1.65 | 2 | 72 | 0.6 | 0.25 | - | - | SOT-523 |
| JTNM4001 | N-Channel MOSFET | 1 | 20 | ±6 | 1 | 0.41 | 0.7 | 67 | 0.8 | 0.25 | - | - | SOT-523 |
| JTNM3013 | N-Channel MOSFET | 1 | 30 | ±20 | 1.5 | 1.3 | 4 | 36 | 0.27 | 0.44 | 0.8 | 1.5 | SOT-723 |
| JTNM3011 | N-Channel MOSFET | 1 | 30 | ±20 | 3 | 0.039 | 0.059 | 570 | 5.7 | 1.5 | 0.84 | 1.5 | SOT-23-6L |
| JTNM3008 | N-Channel MOSFET | 1 | 30 | ±20 | 2 | 0.057 | 0.077 | 265 | 3.1 | 0.8 | 0.8 | 1.5 | SOT-23 |
| JTNM3003 | N-Channel MOSFET | 1 | 30 | ±20 | 3 | 0.043 | 0.059 | 570 | 4 | 0.8 | 0.84 | 1.5 | SOT-23 |
| JTNM2046 | N-Channel MOSFET | 1 | 20 | ±5 | 0.85 | 0.22 | 0.42 | 50.6 | 0.71 | 0.32 | 0.7 | 1.1 | DFN1006-3L |
| JTNM2030 | N-Channel MOSFET | 1 | 20 | ±6 | 1 | 0.21 | 0.31 | 50 | 0.95 | 0.43 | 0.7 | 1.5 | SOT-723 |
| JTNM2024 | N-Channel MOSFET | 1 | 20 | ±8 | 1 | 0.027 | 0.036 | 1025 | 3.9 | 0.8 | 0.6 | 1.5 | SOT-23 |
| JTNM2021 | N-Channel MOSFET | 1 | 20 | ±6 | 0.85 | 0.22 | 0.31 | 50 | 0.89 | 0.37 | 0.7 | 1.5 | SOT-323 |
| JTNM2020 | N-Channel MOSFET | 1 | 20 | ±6 | 0.85 | 0.22 | 0.31 | 50 | 0.9 | 0.38 | 0.7 | 1.5 | SOT-23 |
| JTNM2016 | N-Channel MOSFET | 1 | 20 | ±8 | 1 | 0.04 | 0.047 | 500 | 3.2 | 0.8 | 0.62 | 1.5 | SOT-23 |
| JTNM12N65F | N-Channel MOSFET | 1 | 650 | ±30 | 5 | 0.57 | 0.7 | 1670 | 12 | 39 | 0.7 | 1.5 | TO-220F |
| JTNM07N65 | N-Channel MOSFET | 1 | 650 | ±30 | 5 | 1.05 | 1.05 | 930 | 7 | 156 | 0.74 | 1.5 | TO-220 |
| JTNM07N60F | N-Channel MOSFET | 1 | 600 | ±30 | 5 | 1 | 1.2 | 930 | 7 | 34 | 0.74 | 1.5 | TO-220F |
