JTM2180 PFM Step-up DC/DC converter IC with low supply current by CMOS process. High frequency noise that occurs during switching is reduced by using advanced circuit designed, output voltage is pro

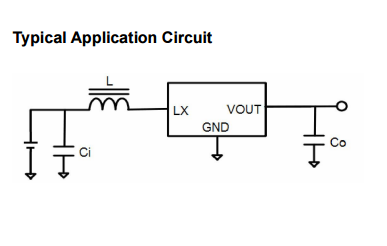

JTM2180 Series is a PFM Step-up DC/DC converter IC with low supply current by CMOS process. High frequency noise that occurs during switching is reduced by using advanced circuit designed, output voltage is programmable in 0.1V steps between 2.0~5.0V and maximum frequency is 250KHz(TYP.). A low ripple, high efficiency step-up DC/DC converter can be constructed of JTM2180Xxx with only two external components. JTM2180Xxx is suitable for use with battery-powered instruments with low noise and low supply current.
l High efficiency：95%
l Maximum frequency：250KHz
l Low Quiescent Current：15uA
l Input Voltage: 0.9V~5.0V
l Output Voltage Range:2.5V to 5.0V
l High Accuracy:± 2%
l Low ripple and Low noise

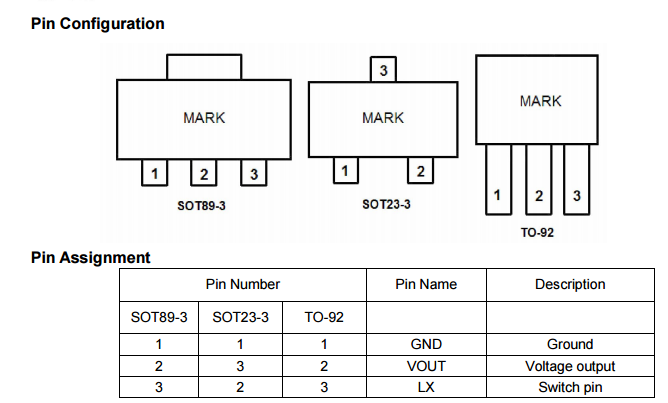

l Package :SOT89-3 ，SOT23-3 ，TO-92
l Power source for battery-powered equipment
l Power source for Wireless mouse,toys, Cameras, VCRs, PDAs, MP3, and Led lighting etc
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
| Part Number | MODE | VIN | VOUT | Accu | FOSC | Eff. | Application | Package |
| JTM2100 | PFM | 0.9-6.5V | 3.0-5.0V | ±2.5% | 100K | 85% | ①②③④⑤⑥⑧ | SOT23-3/SOT23-5/SOT89-3 |
| JTM2101 | PWM | 0.9-6.5V | 3.0-5.0V | ±2.5% | 100K | 87% | ①②③④⑤⑥⑧ | SOT23-3/SOT23-5/SOT89-3 |
| JTM2108 | PFM | 0.9-6.5V | 2.7-5.6V | ±2.5% | 180K | 85% | ①②③④⑤⑥⑦ | SOT23-5/SOT89-3/SOT23-3/TO92 |
| JTM2109 | PFM/PWM | 0.9-6.5V | <20V | ±2% | 300K | 88% | ⑥⑦⑨⑩ | SOT23-5 |
| JTM2110 | PFM | 0.9-6.5V | 1.8-6.0V | ±2% | 150K/ | 85% | ①②③④⑤⑥ | SOT89-3 |
| 300K | /SOT23-5 | |||||||
| /SOT23-3 | ||||||||
| JTM2129 | PFM/PWM | 0.9-6.5V | <20V | ±2% | 300K | 88% | ⑥⑦⑨⑩ | SOT23-5 |
| JTM2135 | CHARGE | 2.7-5.5V | 5.0V | ±3% | 650K | 81% | ①②④⑦⑧ | SOT23-6 |
| JTM2139 | PFM/PWM | 0.9-6.5V | <20V | ±2% | 1M | 85% | ⑥⑦⑨⑩ | SOT23-5/ |
| SOT89-5 | ||||||||
| JTM2149 | PFM/PWM | 0.9-6.5V | <20V | ±2% | 1M | 85% | ⑥⑦⑨⑩ | SOT23-5/ |
| SOT89-5 | ||||||||
| JTM2159 | PFM/PWM | 2.5-5.0V | <12V | ±2% | 1M | 85% | ⑥⑦⑨⑩ | SOT23-6 |
| JTM2169 | PFM/PWM | 2.5-5.0V | <20V | ±2% | 1M | 88% | ①⑥⑦⑨⑩ | SOT23-6 |
| JTM2179 | PFM/PWM | 0.9-6.5V | <20V | ±2% | 1.2M | 85% | ⑥⑦⑨⑩ | SOT23-6 |
| JTM2185 | PFM/PWM, Synchronous | 2.9-4.4V | <5.5V | ±2% | 1M | 94% | ①②④⑦ | ESOP8 |
| JTM2186 | PFM, Synchronous | 0.9-6.5V | 1.8-6.0V | ±2% | 330K | 85% | ①②③④⑤⑥ | SOT89-3/ SOT23-5 |
| /SOT23-3 | ||||||||
| JTM2188 | PFM, Synchronous | 0.9-5.0V | 1.8-5.0V | ± 2% | 400K | 95% | ①②④⑥⑦ | SOT89/SOT23/ |
| SOT23-5/TO92 | ||||||||
| JTM2189 | PFM, Synchronous | 0.9-6.0V | 1.8-6.0V | ±2% | 140K | 81% | ①②③④⑤⑥ | SOT89/SOT23-3 |
| Applications： ①Battery powered equipJTMnt②Wireless mouse, Wireless keyboard③Toys④CaJTMra, Video caJTMra⑤VCR ⑥PDA⑦LED Lighting⑧Wireless communication equipJTMnt⑨MID⑩Audio equipJTMnt | ||||||||
